In the box：

Frame；Seat Post；Fork；Front/Rear Thru-axle.

Handlebar with Headsets, 10mm spacer, 30mm spacer ( if you don't need the handlebar, please contact us)

Seat post： 182g
Fork： 425g

Specification

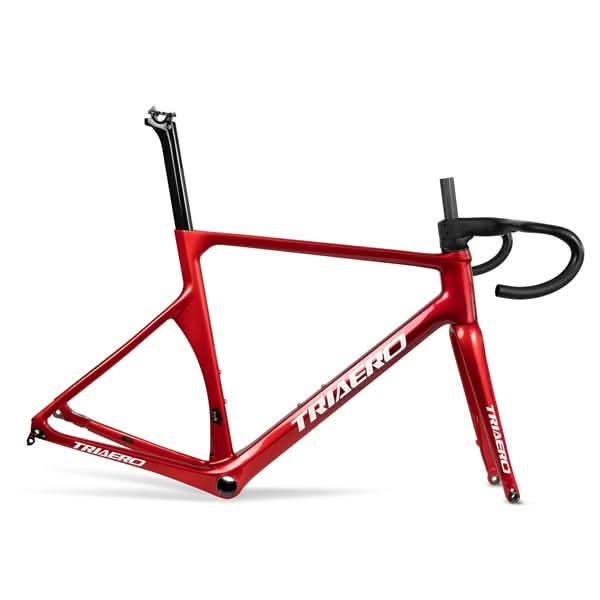

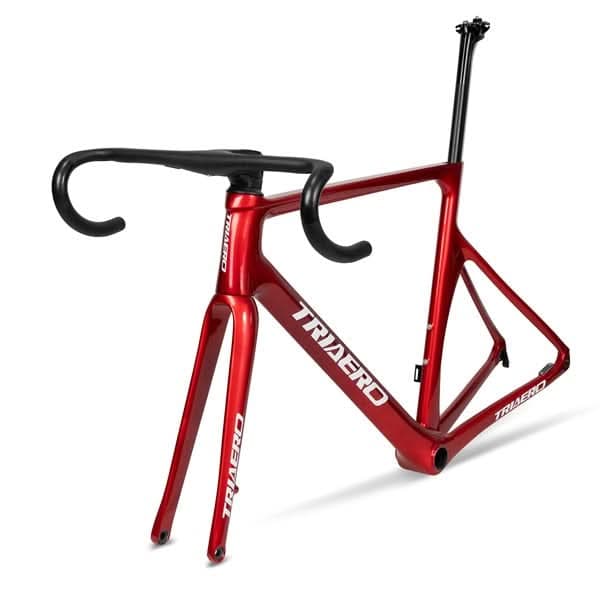

Type	New Aero Carbon Road Disc Brake Frame
Material	Toray T700 Carbon
Size	45/48/51/54/57cm
Fork	AO22 specify carbon fork
Handlebar width & Stem	40090mm/420110mm
Headtube	Straight 1 1/2" head tube
Weight	45cm 1058g 48cm 1070g 51cm 1092g 54cm 1115g 57cm 1248g
Seatpost	Adjustable Seatpost
Bottom bracket	BB86
Max tire clearance	700*28c 700x28c（maxxis tire can be supported）
Brake mount type	Flat mount Disc brake 140mm
Dropout	Front 12100mm thru-axle Rear 12142mm thru-axle
Groupset	Recommended install electronic shifting groupset
Handlebar&stem	Compatible with ICAN handlebar HBA22
Test Standard	ISO4210

Why you choose AERO Road Frame A22

1. Advanced aerodynamics

We all know aerodynamic drag is the biggest resistance in cycling. Our design focus on aerodynamics. All we do is make your ride faster.

2.A balanced geometry, flexible frame size option

AERO Road Frame A22 has a variety of sizes to choose from, try to meet the needs of more customers.
5 frame sizes for riders 150cm -190 cm.Our AERO Road Frame A22 is also suitable for female cyclists.

3.Fully-internal routing

In order to improve aerodynamics and make a cleaner line design, we use fully internal routing.

Not only let you ride faster, but also makes the bike more beautiful.

4.Compact and beautiful design

There are compact and beautiful designs for the frame. We don't spend more energy on non-practical functions.

We just make an aerodynamics frame suitable for more riders. We paint with coordinated colors to make the whole frame more beautiful and special

5.Light frame

The weight of the entire frame is kept within a reasonable range, and the weight is only 1058g to make your bike ride faster and improved aerodynamics. All materials are used in the right place, there is no waste.

Compare with Aeroad CF SLX 8

Our Frame：1058 g
Canyon Frame Weight: 980 g

6.Adjustable seat post, perfect structure

According to your needs, you can adjust the seat post height easily and quickly to make it more comfortable.
What is more, ，the seat post gets a really broad profile to make it more aerodynamic.

7.two-year warranty

You will don't worry about the quality. We have a complete quality assurance system to support better ride

8. Support electronic shifting groupset

Our frame supports mainstream groupset: Shimano R8070; Sram Force AXS.

9.Shorter chainstay length

On the premise of perfect function, we shortened the chainstay length, which means allow you to maintain the bike well. It is really short tight back end perfect to make the geometry of the disc bike the same as the rim brake.

You may ask

I want to know how safe they actually are and if they are okay to take on a heavier rider?

Generally speaking, the weight of the frame can reach 120kg, there is no problem when you follow the standard riding method.

Noted：The load-bearing limit of each bike frame will have a little difference.

A22 Frame Geometry

Recommended size chart：
